Brand | Swagman |
Receiver Style | 2" x 2" Receiver Tube |
Manufacturer Warranty | Limited Lifetime |
Installation Instructions - Part 1 | Click Here for instructions (PDF format) |
Tell a Friend About This Product

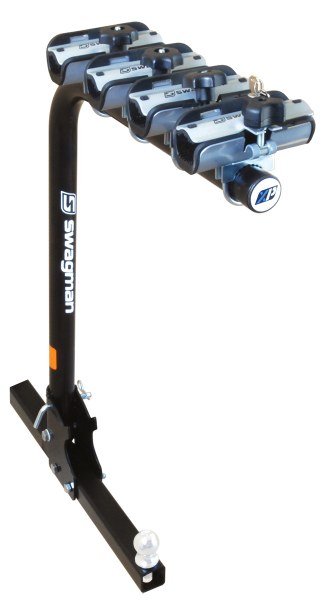

64975 XP 4 Bike Fold Down Towing Rack (2" Receiver)
Features:
*Carries up to 4 bikes and pulls a lightweight trailer
*Steel construction
*Cradles secure bikes to the rack using thick, kraton vinyl cushioning and steel plates
*Deep, flexible grooves help prevent cables from scratching frames
*Cushioning helps keep bikes from swaying front to back
*Cradles rotate left to right to accommodate many alternative and women's frames?*Keep wheels level to improve ground clearance
*Locking knob secures bikes to the rack
*Rack tilts forward to allow easy access to vehicle's rear cargo area
Details:
Fits 2" x 2" trailer hitches
Tow bar extends straight out, providing a 0" rise or drop from the top of the receiver opening
Rated at 3,500 lbs. GTW and 350 lbs. tongue weight
Ball for towing applications requires a 3/4" diameter shank
Interior cradle dimensions: 7-3/16" long x 1-3/4" wide x up to 1-3/4" tall (at highest setting)?Accepts bike frames up to 2" in diameter
Exterior cradle dimensions: 7-3/16" long x 3" wide x 3" tall (back lip of cradle)?Front lip of cradle measures 2" tall
Overall height of the cradle including the bike rack support tube is 5-3/4" tall to the back lip of the cradle?Overall front lip height is 4-3/4" tall
Distance from center of pin hole to center of ball hole: 22"
Distance from pin hole to closest upright portion of rack: 6-1/4"
Includes pin and clip to secure the rack to the trailer hitch
Works with Anti-rattle threaded lock (S64027, sold separately)
Limited lifetime warranty
Average rating:
|
Reviewer: Wyatt Harris |
bought this along with 64030 cable lock. Assembly is required but it is a pretty simple product to assemble. Tilting bike mounting points make it very easy to mount bikes. There are 3 positions for the lockdown plate allowing for different sized bicycle top tubes. The rack is very sturdy and feels very secure even with trailer attached. Ball requires a smaller diameter threaded bolt to attach so keep this in mind when ordering. Out trailer has a leveling jack that is in the way so the 4th bike must be installed upside down (wheels facing the sky) to clear it. If the bike had a smaller bottom tube, I'm sure it could be mounted to that to allow for the additional clearance. Regardless, this is a great rack that allows for the towing of a trailer. After talking with my neighbour who had a similar rack without individual bike mounts. I'm glad we went with this rack. HitchWarehouse.com was awesome to deal with. |
