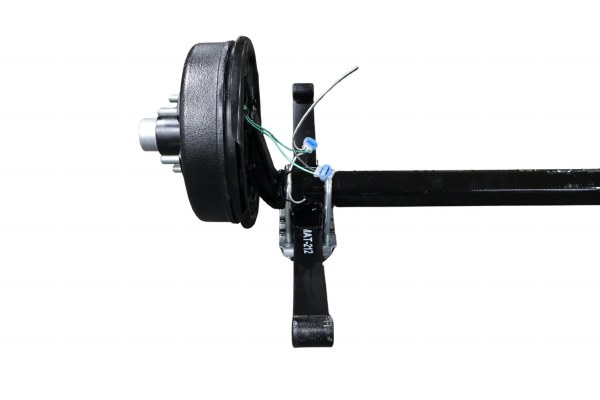

3.5k Drop Axle HF 85", SC 70" Electric Brakes, w/Springs

Product Overview

The Lippert V000111285 is a complete 3,500 lb capacity trailer axle assembly designed with a 4-inch drop to lower trailer ride height while maintaining proper suspension geometry. Built with an 85" hub face and 70" spring center, this axle is a common fit for utility, cargo, and RV-style trailers requiring improved stability and easier loading height.

This unit comes fully equipped with hubs, electric brakes, and springs, and features Lippert’s EZ Lube-style greasing system for simplified bearing maintenance without full disassembly.

Key Features

3,500 lb Load Capacity
Ideal for light-duty trailers, cargo haulers, and small RVs
4" Drop Design
Lowers trailer center of gravity for better towing stability and easier loading
85" Hub Face / 70" Spring Center
Industry-standard sizing for many OEM and replacement applications
5 on 4.5" Bolt Pattern
Compatible with common trailer wheels
Pre-installed Electric Brakes (10")
Reliable stopping power with standard 7-way trailer wiring setups
Underslung Spring Configuration
Springs mount under the axle tube for additional ride height adjustment
EZ Lube Grease System
Allows quick bearing servicing through the spindle without removing hubs


What’s Included

Complete axle beam with welded spindles
Pre-installed hub and drum assemblies (5 on 4.5")
10" electric brake assemblies (left and right)
Leaf springs (pair)
Grease caps / EZ lube fittings
Wheel studs and lug hardware (pre-installed on hubs)

Specifications

Part Number: V000111285
Manufacturer: Lippert
Capacity: 3,500 lbs
Axle Type: Drop axle (4")
Hub Face (HF): 85 inches
Spring Center (SC): 70 inches
Bolt Pattern: 5 on 4.5"
Brake Size: 10" electric brakes
Lubrication: EZ Lube greaseable spindles
Spring Mounting: Underslung (springs under axle)
Tube Style: Round steel tube with camber

Application

This axle is commonly used on:

Utility trailers
Cargo trailers
Small equipment trailers
RV and camper trailers
Landscape trailers
The 4" drop design makes it especially useful where lower deck height is needed for loading equipment, motorcycles, or materials.

Fitment Notes

Must match both hub face (85") and spring center (70") for proper fit
Confirm bolt pattern (5 on 4.5") matches your existing wheels
Designed for underslung spring setups (springs mounted below axle)
Compatible with standard trailer brake controllers and 7-way wiring
If replacing an axle, always verify:

Frame width
Spring spacing
Fender clearance after drop

Hitch Warehouse Tip

When switching to a drop axle, always check your fender and tire clearance - lowering the trailer improves stability, but can reduce clearance under load.

Also, take advantage of the EZ Lube system by doing regular maintenance - fresh grease every season can significantly extend bearing life and prevent costly failures.
