3.5k Drp Axle HF 95", SC 78", Electric Brakes. w/Springs, underslung

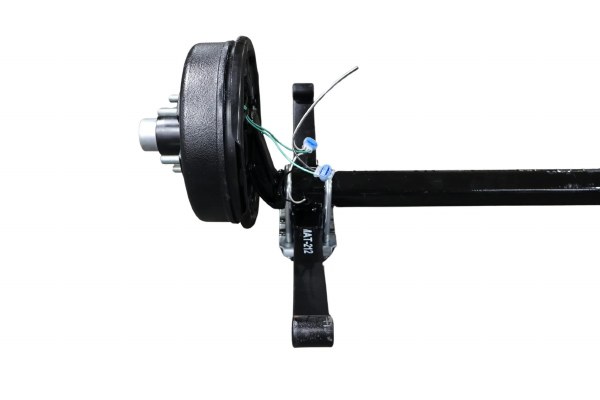

Lippert VU000111382 3,500 lb Drop Trailer Axle with Electric Brakes & Springs - 95"Hub Face / 78" Spring Center (Underslung)



Product Overview

The Lippert VU000111382 is a 3,500 lb capacity drop trailer axle assembly, engineered to provide improved trailer stability and a lower center of gravity. This complete kit includes adjustable electric brakes, hub/drum assemblies, and leaf springs, making it an ideal solution for both new trailer builds and axle replacements.

The drop axle design lowers the frame height compared to a straight axle, improving handling and making loading easier - especially beneficial for cargo, utility, and equipment trailers.

Configured with an underslung spring setup (springs mounted under the axle), this axle maintains proper geometry while still offering the advantages of a lowered ride height from the drop design.

With a 95-inch hub face and 78-inch spring center, it fits a variety of wider trailer applications requiring stable tracking and proper weight distribution.



Key Features

3,500 lb Axle Capacity
Ideal for light-duty trailers and general hauling applications
Drop Axle Design
Lowers trailer ride height for improved stability and easier loading
Complete Assembly - Ready to Install
Includes axle beam, electric brakes, hubs, and leaf springs
Adjustable Electric Brakes
Fine-tune braking performance for smoother, safer stops
Underslung Configuration (Spring-Under)
Maintains correct mounting geometry while maximizing clearance where needed
Precision-Built Lippert Construction
Designed for durability, consistent alignment, and long service life


Specifications

Part Number: VU000111382
Axle Capacity: 3,500 lbs
Axle Type: Drop axle
Hub Face (HF): 95 inches
Spring Center (SC): 78 inches
Configuration: Underslung (spring-under axle)
Brakes: Electric, adjustable
Bolt Pattern: Typically 5 on 4.5" (confirm before ordering)
Finish: Painted steel


Application & Fitment

This axle is commonly used on:

Utility trailers
Cargo trailers
Landscape trailers
Enclosed trailers
RV and camper trailers
Fitment Notes:

Confirm 95" hub face and 78" spring center match your trailer
Verify drop axle vs straight axle to maintain proper ride height
Ensure underslung configuration matches your suspension setup
Check wheel bolt pattern and brake wiring compatibility


What’s Included

(1) 3,500 lb drop axle beam
(2) Electric brake assemblies (left & right)
(2) Hub/drum assemblies
(2) Leaf spring packs
Mounting hardware (typical Lippert configuration)


Installation Overview (Simplified)

Safely support trailer frame
Position axle (ensure correct orientation - brake assemblies to the rear)
Align springs with hangers (78" centers)
Install U-bolts and mounting hardware
Connect brake wiring to trailer harness
Install wheels and torque properly
Adjust brakes and test operation


Hitch Warehouse Tip

A drop axle lowers your trailer, but combining it with an underslung setup raises it slightly back up - so always measure your final ride height before ordering.

If you’re replacing a straight axle with a drop axle, expect a noticeable difference in loading height and towing stability.

Always recheck fender clearance and tire size after installation - especially on wider setups like a 95" hub face.
