3.5k Straight Axle 86" HF 68.5" SC w/Self-Adjusting Electric Brakes, w/Springs, underslung

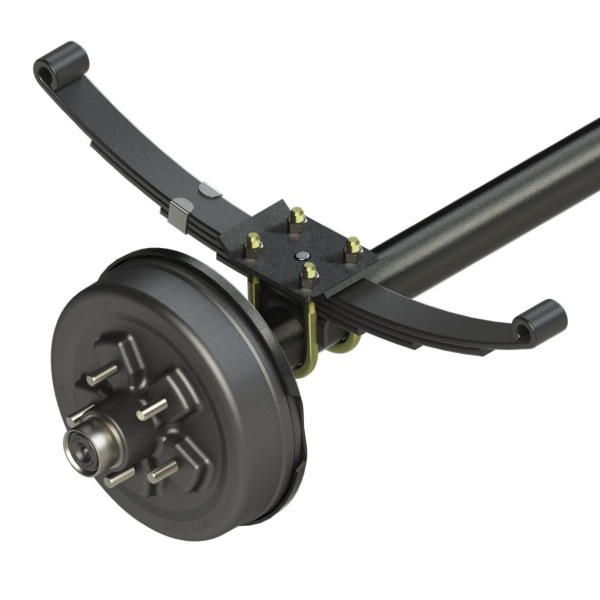

Lippert V000179568 3,500 lb Trailer Axle with Electric Brakes & Springs - 86" Hub Face / 68.5" Spring Center (Underslung)



Product Overview

The Lippert V000179568 is a complete 3,500 lb capacity trailer axle assembly, built for dependable towing performance in utility, cargo, and light equipment trailers. This axle comes fully equipped with self-adjusting electric brakes and leaf springs, making it a ready-to-install solution for both new builds and replacement applications.

Designed with an underslung configuration (springs mounted under the axle tube), this setup provides additional ride height—ideal for improved ground clearance or matching existing trailer geometry.

With an 86-inch hub face and 68.5-inch spring center, this axle fits a wide range of common trailer frames while maintaining proper wheel alignment and load balance.



Key Features

3,500 lb Axle Rating
Ideal for light-duty trailers, utility trailers, and small equipment haulers
Complete Assembly - Ready to Install
Includes axle beam, hubs, electric brakes, and leaf springs
Adjustable Electric Brakes
Allows manual brake tuning for optimal stopping performance and even wear
Underslung (Spring-Under) Configuration
Raises trailer height for increased clearance and better load leveling
Precision Alignment
Engineered for smooth tracking and even tire wear
Pre-Greased Hubs (Typical Lippert Configuration)
Ready for immediate installation (verify before install)


Specifications

Part Number: V000179568
Axle Capacity: 3,500 lbs
Hub Face (HF): 86 inches
Spring Center (SC): 68.5 inches
Configuration: Underslung (spring-under axle)
Brakes: Electric, adjustable
Bolt Pattern: Typically 5 on 4.5" (confirm before ordering)
Axle Type: Straight axle
Finish: Painted steel


Application & Fitment

This axle is designed for a wide range of trailer types, including:

Utility trailers
Cargo trailers
Landscape trailers
Small equipment haulers
RV and camper trailers
Fitment Notes:

Ensure your trailer matches both hub face (86") and spring center (68.5") measurements
Verify underslung vs overslung configuration to maintain proper ride height
Confirm bolt pattern and brake compatibility with your existing wheels and wiring


What’s Included

(1) 3,500 lb axle beam
(2) Electric brake assemblies (left & right)
(2) Hub/drum assemblies
(2) Leaf spring packs
Pre-installed mounting hardware (typical Lippert configuration)


Installation Overview (Simplified)

Support trailer frame safely
Position axle with correct orientation (brakes facing rear)
Align springs to hangers (68.5" centers)
Secure U-bolts and mounting hardware
Connect brake wiring to trailer harness
Install wheels and torque to spec
Test brake operation and adjust as needed


Hitch Warehouse Tip

When replacing an axle, always double-check your hub face and spring center measurements - even a small difference can cause alignment issues or tire wear.

If you’re switching from overslung to underslung, expect the trailer to sit higher - this can be useful for clearance but may require adjusting your coupler height.

Before hitting the road, take a few minutes to manually adjust the electric brakes - it makes a big difference in stopping performance and longevity.
