Outboard Air Kit w/Fill Kit & 0.5 Gallon Tank
PacBrake HP10163
Tell a Friend About This Product
Pacbrake HP325 Series Onboard Air Kit with 0.5 Gallon Air Tank
NOTES: This kit comes with a 0.5 Gallon Air Tank
Pacbrake onboard air systems are all 33% duty cycle (20 minutes @ 100 psi) and increase air volume depending on the tank size (for compressed air storage).
Each onboard air system comes complete with a steel air tank, pressure switch, relay(s), HP325 series compressor, fittings, electrical connectors & Pacbrake; an Pacbrake curly hose & Pacbrake; air accessory kit housed in a heavy duty zipped canvas bag for easy storage on the go.
COMPRESSOR SPECIFICS (HP10143)
33% Duty Cycle (20 minutes @ 100 PSI)
150 PSI Max Working Pressure
1.2 SCFM
158°F Max / -40°F Ambient Temperature Range
Size: 8.7" x 4" x 6.2" (LxWxH)
Weight: 5.5 lbs
Mountable in any orientation
TANK SPECIFICS (C11940)
Ports: 2 x ¼” (-4) NPT
Rust Inhibitor: Applied to inside of tank
Max Working Pressure: 150 psi
Size: 6.4" x 5.5" x 6.5" (LxWxH) [163 mm x 140 mm x 152 mm]
Weight: 3.4 lbs [1.54 kg]
Welded on Mounting Brackets

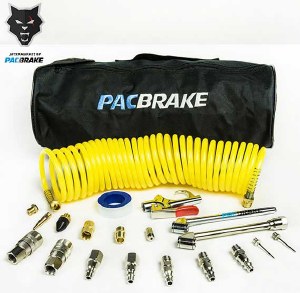

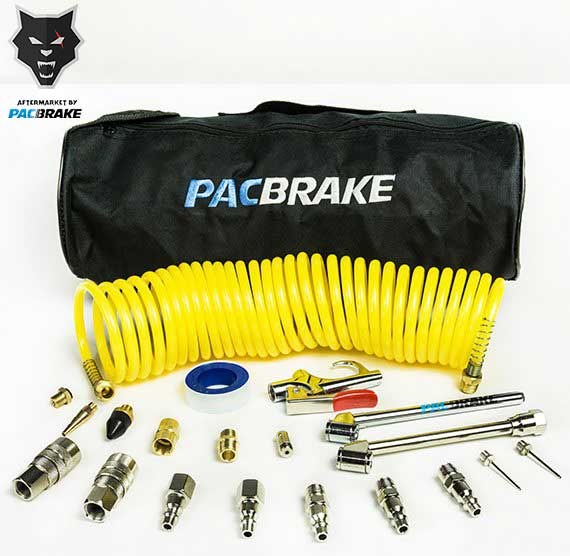

CURLY HOSE &Pacbrake; AIR ACCESSORIES KIT (C11657)
Fill your tires and check tire pressure
Inflate air mattresses, sports balls, beach toys, etc.
Blow air for cleaning, dusting and quick removal of dust and debris
Customer Reviews
This product has not yet been reviewed.
