Trailer Brake Controller

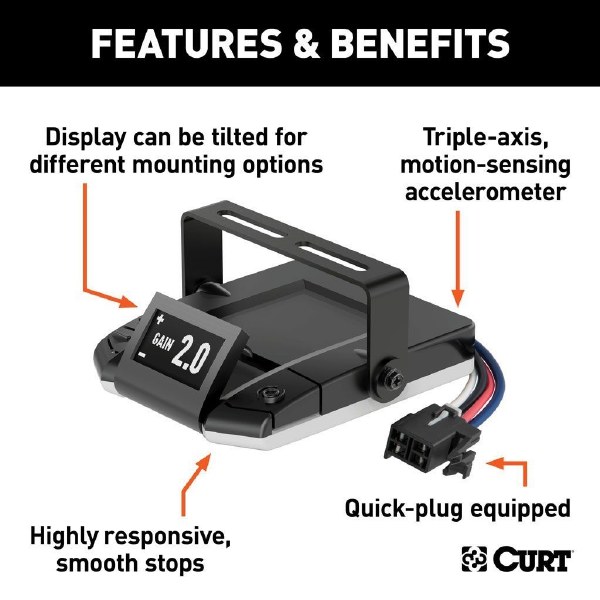

ASSURE PROPORTIONAL TRAILER BRAKE CONTROLLER WITH DYNAMIC SCREEN

Pressure-sensitive manual override button for precise braking power
Large, high-quality 1-1/2" OLED screen displays full text readout
Sleek, low-profile design with tactile buttons
Triple-axis, motion-sensing accelerometer for highly responsive, smooth stops
Third axis provides dynamic power adjustments when going up or down a hill
Display can be tilted for different mounting options, above or below the dash
Diagnostic alerts notify of potential problems like low voltage or disconnect
User-selectable power output and trailer brake light activation
Automatic leveling and calibration eliminate setup requirements
Mountable at any angle up or down in the vertical plane
Nine levels of sensitivity adjustment for varying loads or driving conditions
Auto sleep mode prevents battery drain
Plug-and-play install with vehicle-specific quick plug harness (sold separately)
Operates 2-8 trailer brakes at a time (1-4 axles)
Built-in reverse-polarity and short-circuit protection
Compatible with low-voltage systems, PWM systems, ABS and cruise control

Notes:
Limited lifetime warranty
Includes mounting hardware
PRODUCT DETAILS
Staying safe on the road, protecting your cargo and maximizing the life of your vehicle and trailer requires a sophisticated brake control, especially when you're frequently towing heavy loads. The CURT Assure™ is an advanced brake control option that features a highly responsive sensor, a pressure-sensitive manual override and a high-quality, OLED display to ensure smooth braking no matter where the road takes you.

To fully integrate with your vehicle and provide you with direct monitoring of the trailer brakes, the Assure™ brake controller comes with a 1-1/2" wide, 128 x 64 dot matrix OLED display. This high-quality screen provides a clear, easy-to-view interface to monitor and control trailer brake activity. The screen also flips up or folds down to give you a clear view wherever the brake control unit is mounted.

The Assure™ trailer brake controller is built around a triple-axis motion-sensing accelerometer that detects the movement and position of the vehicle on the road. When the brakes are engaged, this accelerometer allows the Assure™ to deliver the precise amount of power to the trailer brakes to flawlessly decelerate the vehicle-trailer combination. It also automatically adjusts this power output when going up or down a hill.

The pressure-sensitive button on the side of the Assure™ electric brake controller allows for manual override of the automated braking. This means you can apply the trailer brakes whenever necessary, whether to correct minor trailer sway or to reduce speed on the highway. Because the button is pressure-sensitive, you can apply the brakes as much or as little as desired.

Like all CURT brake controllers, the Assure™ is equipped with a quick plug connector to easily plug into any of our vehicle-specific brake control harnesses for a custom fit. It also features a sleek, low-profile design to be unobtrusive in your vehicle and an auto-sleep feature to save power. It is compatible with a variety of vehicle systems and comes with a limited lifetime warranty.
