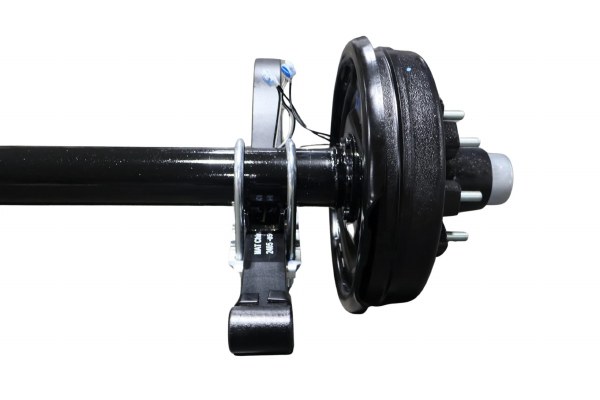

Lippert 7,000 lb Straight Trailer Axle with Electric Brakes and Slipper Springs – 95” Hub Face / 78” Spring Centre
Lippert Part Number: V000590590
This Lippert 7,000 lb straight trailer axle is a complete, heavy-duty replacement axle assembly designed for equipment trailers, flatdeck trailers, utility trailers and other high-capacity applications.
The axle features a 95-inch hub-face measurement and 78-inch spring-centre spacing. It comes equipped with electric brake hub-and-drum assemblies, an 8 on 6.5-inch wheel bolt pattern and heavy-duty 9/16-inch wheel studs.
Slipper-style leaf springs are included, making this axle suitable for trailers using a slipper-spring suspension system. Lippert’s Super Lube spindle system allows grease to be delivered directly through the end of the spindle for easier bearing maintenance without removing the hubs during routine servicing.
Key Features
7,000 lb axle capacity
Straight axle configuration
95-inch hub face
78-inch spring centres
Electric brake assemblies
12-inch × 2-inch electric brakes
8 on 6.5-inch wheel bolt pattern
9/16-inch wheel studs
Brake hub-and-drum assemblies included
Slipper-style leaf springs included
Lippert Super Lube spindle lubrication system
Heavy-duty steel axle construction
Suitable for single-, tandem- or multi-axle trailer applications when properly matched
Common Applications
Ideal for:
Equipment trailers
Flatdeck trailers
Dump trailers
Heavy-duty utility trailers
Car and machinery haulers
Commercial trailers
RV and fifth-wheel trailer applications using matching dimensions
Important Fitment Information
Trailer axles must be matched by more than weight capacity alone. Before ordering, verify:
Axle capacity
Hub-face measurement
Spring-centre measurement
Wheel bolt pattern
Wheel-stud size
Brake size
Spring type and mounting arrangement
Axle position above or below the springs
The 7,000 lb rating applies to the axle assembly. The trailer’s usable capacity is also limited by the ratings of its tires, wheels, springs, frame, coupler and other suspension components.
Hitch Warehouse Tip
Measure the existing axle from the face of one hub to the face of the opposite hub, and from the centre of one spring to the centre of the opposite spring. Both measurements should match before installation.
Axles are application-specific. Please contact Hitch Warehouse if you need assistance confirming axle measurements or trailer compatibility.
