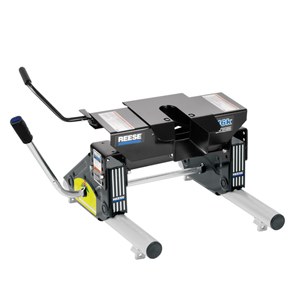

Reese Hitch, 16k, Fifth Wheel Hitch, Dual Jaw

Hitches, Hitch Reese, Hitch Fifth Wheel, Drawtite, Hidden Hitch

This superior fifth wheel hitch features side-to-side pivot action to better accomodate hook-ups on uneven ground - with Round Tube Slider and quick-easy install and removal in just seconds!

Hitch Capacity: 16,000 lbs
Pin Weight Capacity: 4,000 lbs
Vertical Height Adjustment: 15" to 18"
Additional Slider Travel Distance: 12" front to back.

Features Include:

* Four-Way Pivot Head (fore-and-aft and side-to-side) provides 4 to 5 Degrees Pivot for easy hook-ups on uneven ground.
* Dual-Jaw Locking System provides more jaw-to-king-pin contact than traditional slide-bar models, with less rattle and overall increased security.
* Locking Jaw Handle comes with cushioned grip.
* Wide Stance One-Piece Legs for improved stability.
* Efficient Installation System provides strong performance and quick-easy removal to allow full access to truck bed.
* Black Powder-Coat Finish is corrosion resistant.
* Requires Rails and Installation Kit (Sold Separately).

ROUND TUBE SLIDER:

* Provides additional clearance required for your short-bed pickup to turn safely at slow speeds.
* Prevents trailer from hitting your pickup cab during sharp, slow-speed turns - inhibiting binding and providing smooth ease of operation.
* Provides additional 12" travel distance front to back.
* Slider system re-engineered to be the best in the industry.
* Contoured Rollers Float from side-to-side to accommodate mounting systems that may not be fully square.
* Embossed Roller Supports for low friction and longer wear.
* Forged Mounting Feet for wide consistent attachment to rails and reduced play.
* Updated Pin Mounting Holes to better align with the current rail kits.
* Plated Rails hold up longer for extended wear.

* First Slider engineered and tested to comply with SAE J2638 standards, based on heavy-duty, accelerated life cycle criteria developed by SAE for fifth wheel and gooseneck tralier hitches.
* SAE J2638 standards set exacting fatigue and static requirements based on a European-style test environment of 900,000 cycles.

NOTE: This hitch will not fit trucks with beds shorter than 6' in length (unless used with a Sidewinder), or trucks with flareside/stepside.

A minimum 13" extended trailer pin box is recommended. When using a slider, hitch will not adjust to lowest height setting.

Cut installation time in half by using a vehicle-specific bracket kit instead of a traditional universal kit.

REESE remains unmatched in safety, reliability and performance in its entire product line.


Due to size and weight, $40 in Freight Charges will apply
