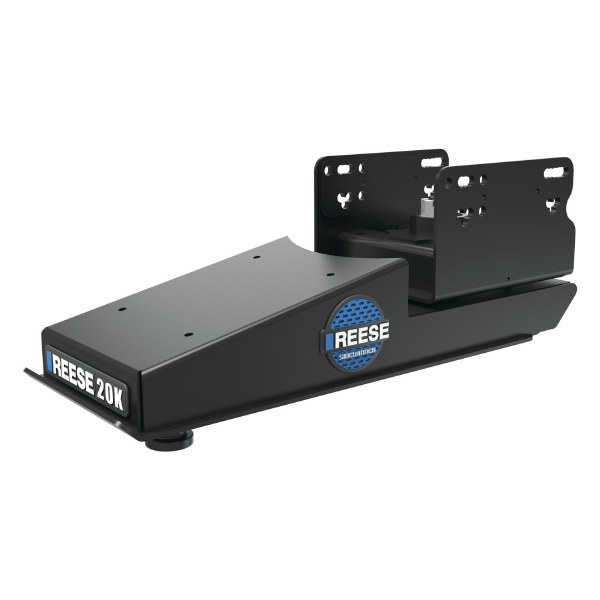

Reese Sidewinder 69220

69220 Sidewinder Pin Box:
Pin box wing set make and model #'s: Lippert #1621, Lippert #1621 HD, Lippert #0719, Lippert Rhino, Lippert Turning Point, and Fabex PB 600 Series
Pin box wing set make and model #'s: Lippert #1716, and Lippert #0115 require (68200) Spacer Kit for installation

68202 Wedge Kit (Sold Separately):
Replacement for included wedge: Fits Reese Elite, M Series, Pro Series Slide Jaw & Dual Jaw hitches

68203 Wedge Kit (Sold Separately):
Replacement for included wedge: Fits CURT E Series and A Series hitches. Sidewinder NOT TO BE USED with the Curt Q-Series( Q-Series is a rubber mounted head with excess movement)

68204 Wedge Kit (Sold Separately):
Replacement for included wedge: Fits B&W Patriot & Companion Series, Husky and Demco 5th wheel hitches

NOTES:
1. The above wedges are the ONLY approved wedges that will work with Reese Sidewinder, Part# 69220.
2. Additional fit applications may apply – Reference Product Drawing under images link.
3. Not all tow vehicle and trailer combinations will allow 90-degree turn.

By locking the trailer king pin to the 5th wheel hitch with the included wedge, the Sidewinder pin box effectively moves the trailer pivot position 22 in. rearward allowing for increased turning capability
Included wedge fits all Reese 5th wheel hitches. All non-Reese hitch systems will require purchase of custom fit wedge kit. Check available wedges offerings below
Automatic tracking – No need for a 5th wheel slider system to make tight turns or to park trailer. The Sidewinder system does this automatically so the user will not have to leave the cab of the truck
Trailer tracks more closely to the tow vehicle while keeping the load centered over the axles
With the pivoting pin box design, you can hook up at nearly any angle
Improved, robust design adds increased stability and strength to support heavier loads
Tested for real world conditions, Sidewinder ™ exceeds all REESE and SAE test standards
Ships pre-assembled - saves on install time
Virtually maintenance free*
Rated for 20,000 lbs. capacity
